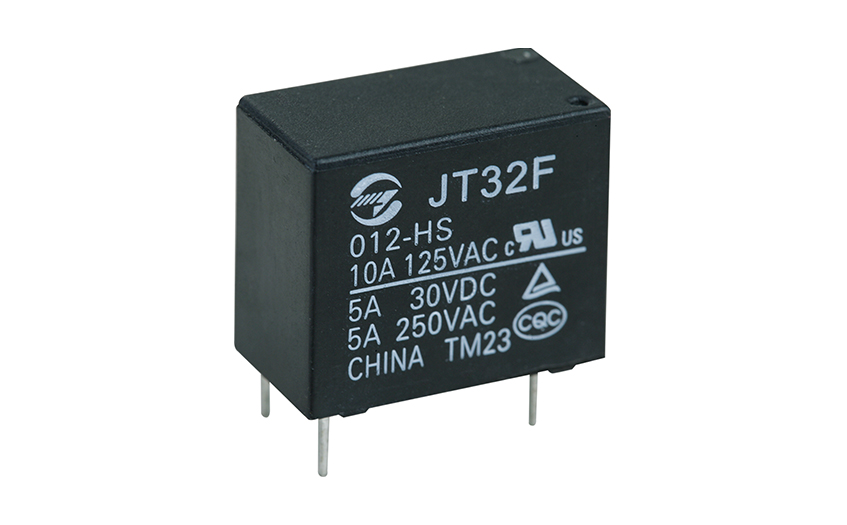

Descriptions of  JT32F relay

  • 10A switching capability

  • 1 Form A and 1 Form C configurations

  • Subminiature, standard PCB layout

  • Plastic sealed and flux profed types available

  • UL insulation system: Class F

  • Product in accordance to IEC 60335-1 available

  • Environmental friendly product (RoHS compliant)

  • Outline Dimensions: (18.4 x 10.2 x 15.3)mm

Subminiature Intermediate Power Relay JT32F Advantages

01
High switching capacity: The JT32F relay has a high switching capacity, which means it can handle larger loads than other types of relays.
02
Low power consumption: JT32F relay is a subminiature power relay that consumes less power and is more energy efficient.
03
Long life span: The JT32F relay has a long life span, which means it can operate for a long time without needing replacement.
04
Fast response time: The JT32F relay has a fast response time, which means it can switch on and off quickly.

Dimensions of Subminiature Intermediate Power Relay JT32F

Dimensions of Subminiature Intermediate Power Relay JT32F

Subminiature Intermediate Power Relay JT32F Order Mark

Subminiature Intermediate Power Relay JT32F Order Mark
