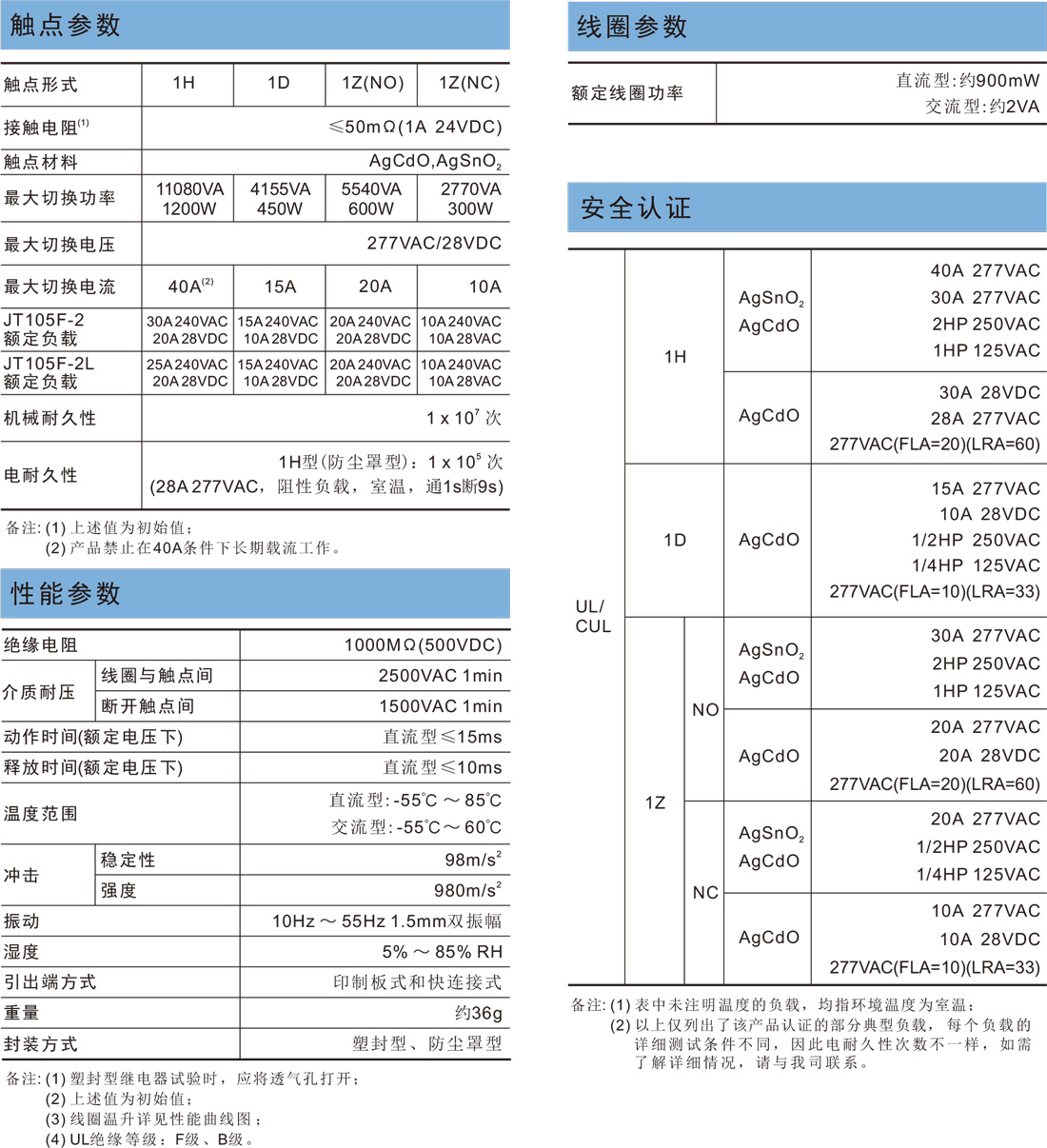

| Insulation resistance | Dielectric strength | Operate time(at nomi. volt.) | Release time(at nomi. volt.) | Ambient temperature | Shock resistance | Vibration resistance | Humidity | Termination | Unit weight | Construction | ||
| Between coil & contacts | Between open contacts | Functional | Destructive | |||||||||
| 1000M Ω (at 500VDC) | 2500VAC 1min | 1500VAC 1min | DC type: 15ms max. | DC type:10ms max. | DC: -55℃ to 85℃ AC: -55℃ to 60℃ | 98m/s² | 980m/s² | 10Hz to 55Hz 1.5mm DA | 5% to 85% RH | PCB&QC | Approx. 36g | Plastic seald, Dust protected |

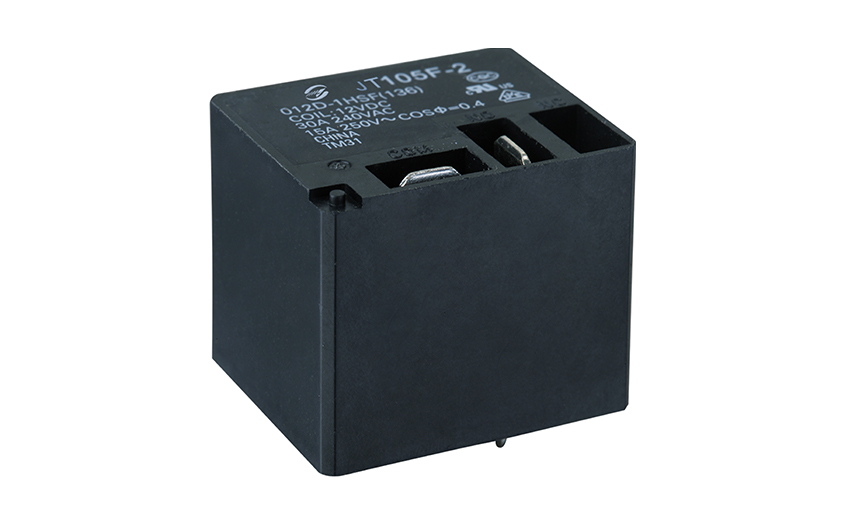

40A switching capability
2.5kV directric strength(between coil and contacts)
Heavy load up to 7200VA
PCB coil terminals, ideal for heavy duty load
Unenclosed, Plastic sealed and dust protected types available
UL insulation system: Class F available
Environmental friendly product (RoHS compliant)

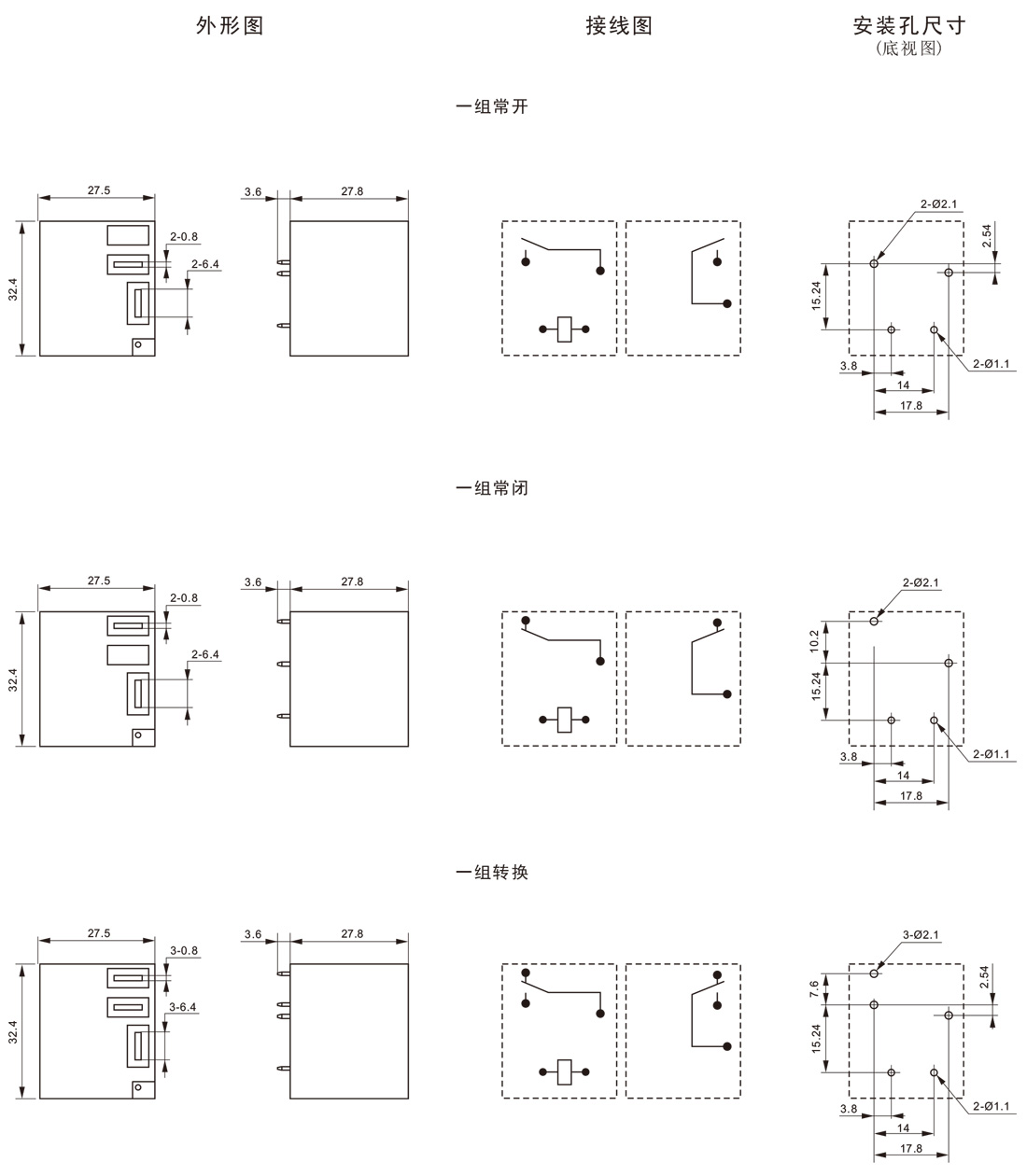

Outline Dimensions: (32.4 x 27.5 x 27.8)mm
