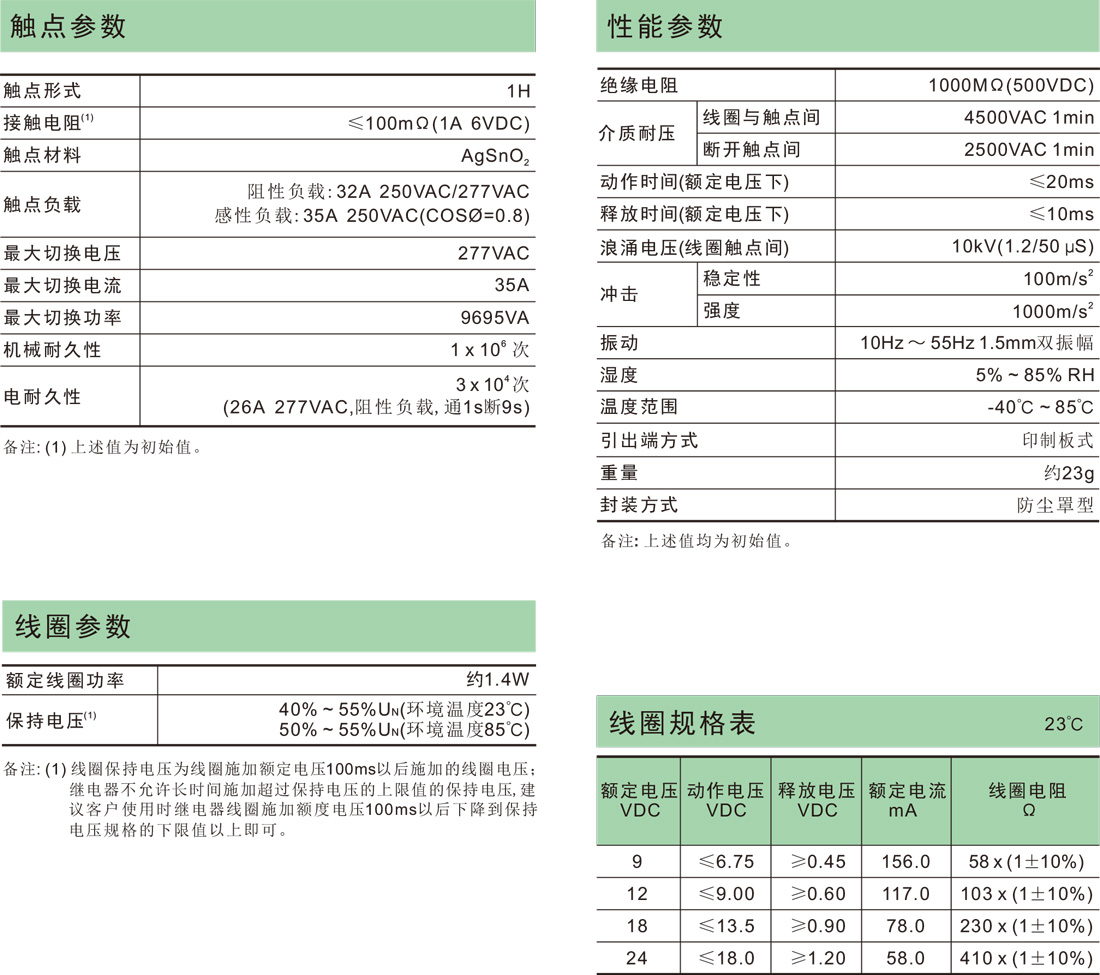

| Insulation resistance | Dielectric strength | Surge withstand voltage | Operate time(at nomi. volt.) | Release time(at nomi. volt.) | Shock resistance | Vibration resistance | Humidity | Ambient temperature | Termination | Unit weight | Construction | ||
| Between coil & contacts | Between open contacts | Functional | Destructive | ||||||||||
| 1000M Ω (at 500VDC) | 4500VAC 1min | 2500VAC 1min | 10kV(1.2/50 μs) | 20ms max. | 10ms max. | 100m/s² | 1000m/s² | 10Hz to 55Hz 1.5mm DA | 5% to 85% RH | -40°C to 85°C | PCB | Approx. 23g | Dust protected |
35A switching capability
Applicable to solar photovoltaic inverter
Applicable to UPS
1.5mm and 1.8mm contact gap available
Product in accordance to IEC60335-1 available
Low coil holding voltage contributes to save energy of equipment
UL insulation system: Class F available
Environmental friendly product (RoHS compliant)

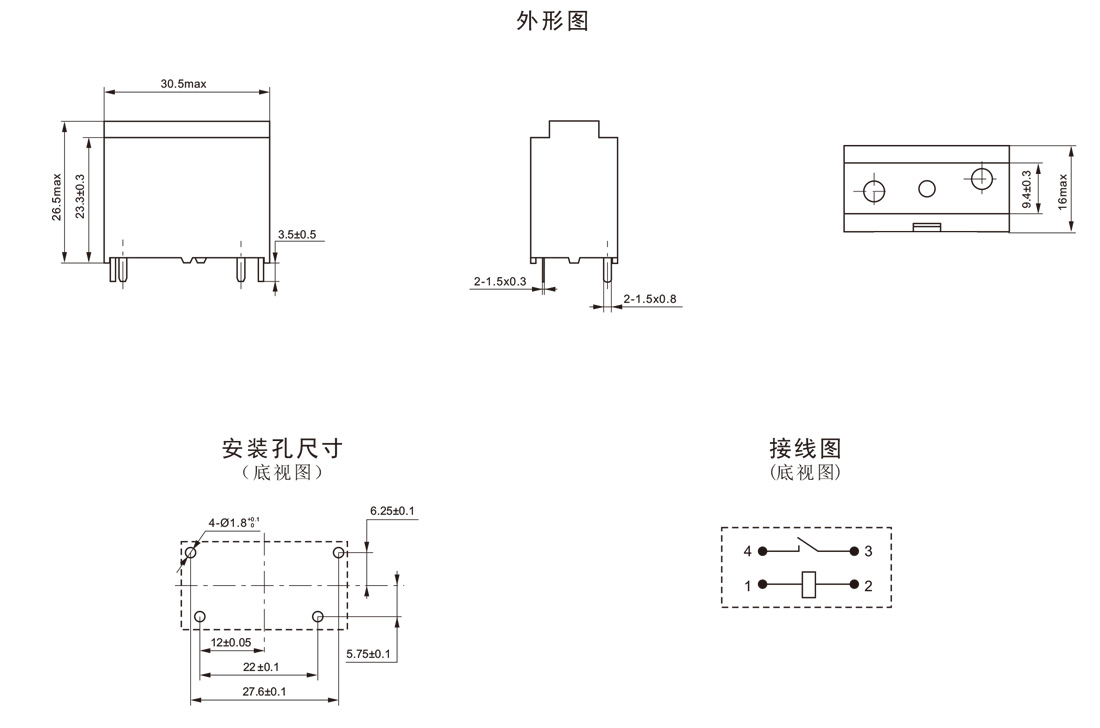

Outline Dimensions: (30.5 x 16.0 x 26.5)mm
